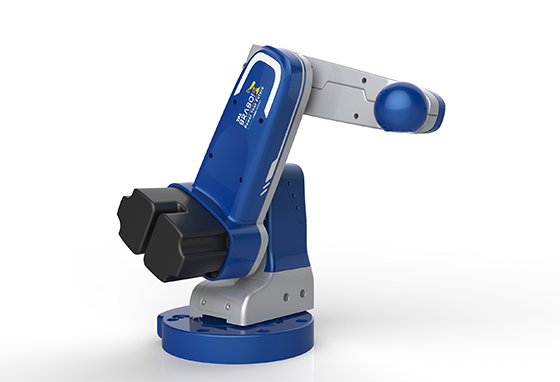

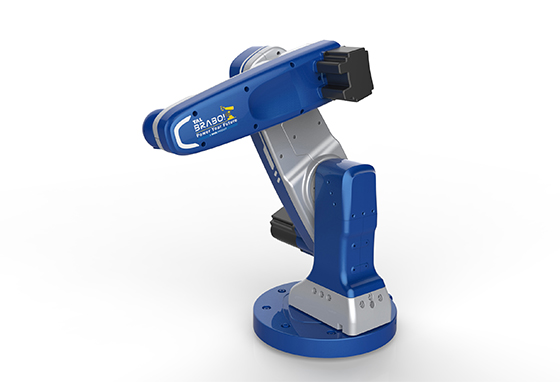

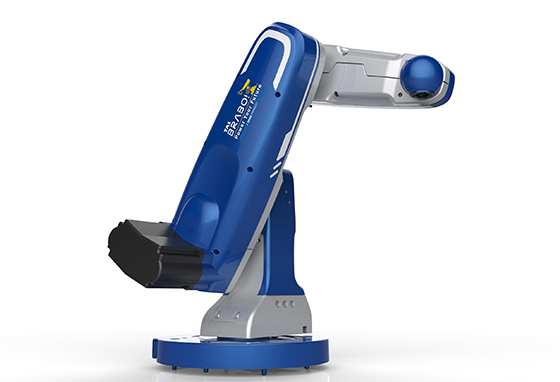

TAL manufacturing solutions has engineered this industrial robotic arm targeting the small and medium manufacturing units. We were asked to defined product graphics and colour palette for the entire range.

Considering its 4 axis arm movement and all round rotation it was necessary that the graphic elements are defined such that it does not add to the visual clutter but at the same time helps in capturing the arm movement and orientation during its functioning. Secondly the graphical elements was designed to complement the product style and further enhance its dynamic character.
